Quickset Bricking System   -   QBS  1113

FOR STEEL ID DIMENSIONS   11' 0"   THROUGH   13' 6"

Shown Above with One Aluminum Arch, Standard 18" Width and Plywood Overlay
- The QBS 1113 Includes Two Factored Sized Aluminum Arches -



Quickset Bricking System:   Four Standard Sizes

Quickset Bricking
System
Brick Lining
Thickness
Steel ID
Range
Al Arch Per
System Size
Adjustable
Pogo Stick
910 6" 8' 6" - 9' 6" 1 AP - 17
910 9" 9' 0" - 10' 6" 1 AP - 17
1011 6" 10' 0" - 11' 0" 1 AP - 27
1011 9" 10' 6" - 11' 6" 1 AP - 27
1113 6" 11' 0" - 13' 0" 2 AP - 27
1113 9" 11' 6" - 13' 6" 2 AP - 27
1416 6" 13' 6" - 15' 6" 2 AP - 27
1416 9" 14' 0" - 16' 0" 2 AP - 27

Each Complete Standard Size QBS Includes :
One or two (see above) factored sized aluminum (Al) arches and
25 each AP-17 or AP-27, adjustable pogo sticks.
Decking planks are not included with any size QBS.

- Fitted and Shipped Upon Customer Request -



Customizing the Quickset Bricking System


We will equip the QBS 1113 or QBS 1416 for a
One-Size Dimension Facility

Contact Us About the QBS for Your Furnace - 281 356 3984

- When Inquiring -
Please Provide the Steel ID and Brick Lining Dimensions






QBS - Description and Features

       The Quickset Bricking System (QBS) is a precision expandable multi-steel ID bricking machine. The incorporation and use of adjustable pogo sticks, an aluminum arch of 180-degrees and a precision expandable systematic mobile support platform allows the QBS the means to precisely enlarge to work a targeted group of steel IDs from a particular system size.

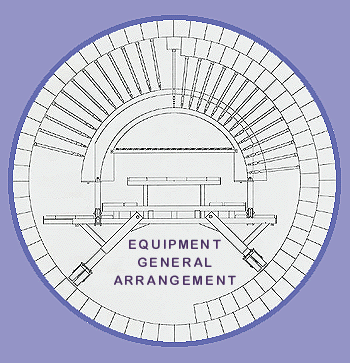

       The QBS is manufactured in four standard group sizes. (Reference: Table above). The QBS 910 and QBS 1011 have a precision enlargement capacity of 12 inches in diameter from their retracted position. The QBS 1113 and QBS 1416 have a precision enlargement capacity of 24 inches in diameter from their retracted position. Also, with the QBS precision expandable leg components for vertical lift, enables the system to obtain exact equipment centering in different types of furnace equipment conditions and designs (refer to: the Equipment General Arrangement below).

       The Quickset Bricking System set up time is short, quick and easy. The QBS has excellent maneuverability and mobility. The QBS will allow overhead brick installation footage up to six feet comfortably before having to be repositioned. The Ratchet & Yoke Lockdown assembly for the Arch Support Carriage (ASC) will rigidly secure the arch and ASC to the support platform. The QBS is designed to start installing brick off of a straight head wall from either end. Dam and lifter areas can be installed from the same set up running the barrel area, utilizing our three sizes of adjustable Pogo Sticks. The QBS is designed for durability and years of maintenance free equipment usage.

- All these Features are TIME and COST SAVING -

This makes the Quickset Bricking System
The Most Cost Effective and Versatile Bricking Equipment Available






FOR MORE INFORMATION CONTACT

Specialty Tool Manufacturing Company
Toll Free: 1 888 718 3878
Phone: 281 356 3984
Fax: 281 259 0925


 EMAIL
